Assembly SPM — Encoder & Torque Arm Cylinder Station
An assembly special purpose machine that combines a servo torque arm and encoder feedback to tighten fasteners to a verified angle and torque window.
- Client
- Hydraulic cylinder manufacturer
- Industry
- Hydraulics & fluid power
The build
This station assembles and tightens cylinder assemblies using a counter-balanced torque arm with encoder feedback on the tightening axis.
Every joint is monitored for both torque and angle, so cross-threaded, missing or under-torqued fasteners are detected at the station instead of downstream. Results are logged per part, giving the customer traceable proof of assembly for each unit that leaves the line.
Delivered by Dadu Industries
- Concept, simulation and 3D design in-house
- Fixture and SPM manufacturing at our Bhavnagar works
- Robot programming, integration and safety guarding
- FAT at our works, commissioning and training at your plant

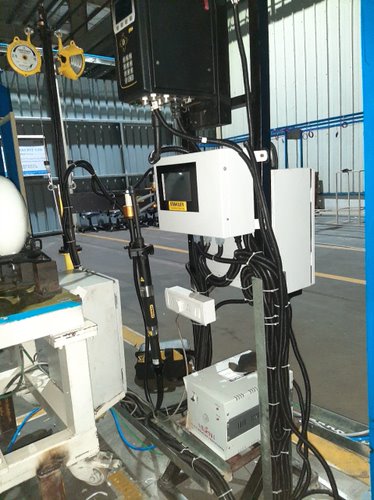

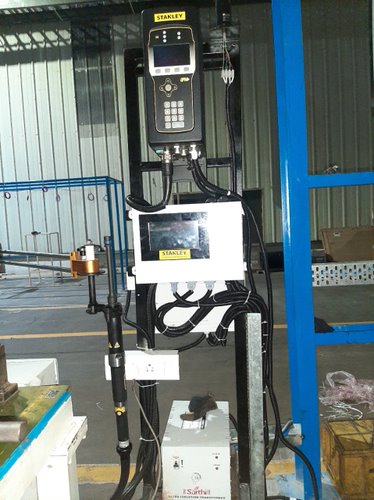

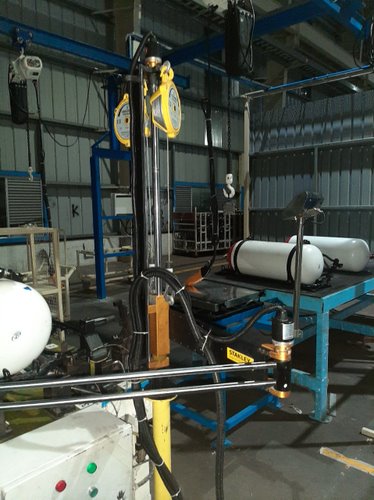

Project gallery
